Description

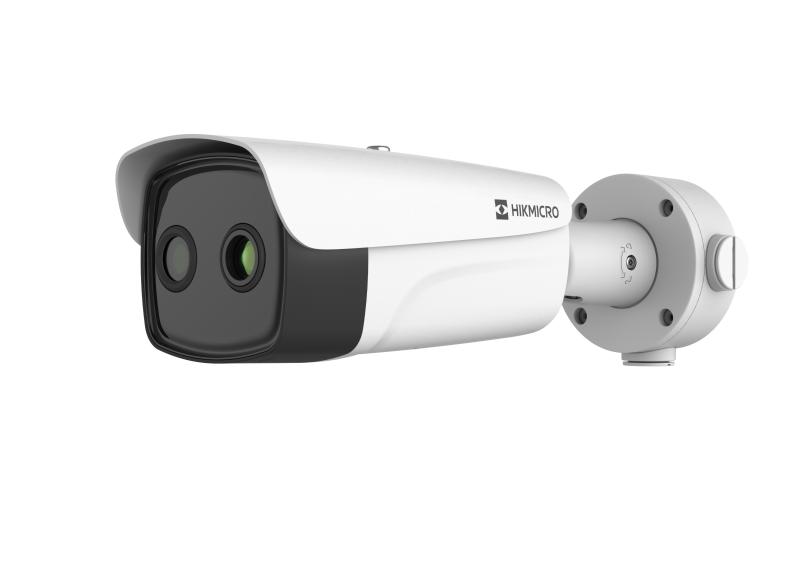

The HIKMICRO HM-TD2638-25/G0/T1Y is a high-performance bi-spectrum camera designed for long-range thermal detection and visible light monitoring. Part of the advanced thermal series, it excels in perimeter security, fire prevention, and temperature anomaly detection, making it suitable for large-scale outdoor applications like industrial sites, borders, and infrastructure protection. It features enhanced AI analytics to minimize false alarms and provide accurate insights in challenging environments.
Key Features:
- Thermal Module: 384 × 288 resolution VOx uncooled sensor with a 25mm fixed lens (F1.0), providing a 15.5° × 11.7° field of view; detection ranges up to 735m for vehicles and 240m for humans; temperature measurement from -20°C to 550°C with ±2°C accuracy.
- Optical Module: 8MP resolution (3840 × 2160) with a variable or fixed lens option, supporting up to 30 fps; includes smart IR for effective low-light performance.
- Illumination: Integrated IR illuminators with up to 50m range for the optical channel, ensuring 24/7 visibility.
- Intelligent VCA: Deep learning-based algorithms for perimeter protection (line crossing, intrusion, region entrance/exit), fire and smoke detection, and temperature exception alarms; supports audio and visual alarms.
- Durability: IP67 weatherproof rating for harsh conditions; wide operating temperature from -40°C to 65°C; robust metal housing for vandal resistance.
- Connectivity and Power: PoE+ (802.3at) support, 12V DC/24V AC options; alarm inputs/outputs, audio interfaces, and microSD storage up to 256GB; compatible with ONVIF and other protocols for easy integration.
This model offers fused thermal and optical imaging for detailed scene analysis.
