Dual lens thermal bullet, 35mm thermal lens, 12mm optical lens,100m IR, 12VDC/24VAC/POE

Description

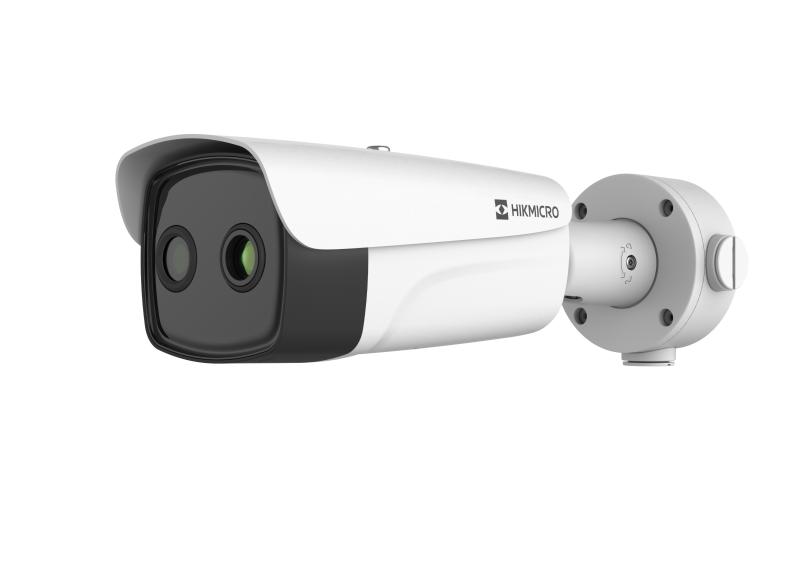

HIKMICRO HM-TD2638-35/G0/T1Y Bi-Spectrum Thermal Bullet Camera

The HIKMICRO HM-TD2638-35/G0/T1Y is a premium bi-spectrum camera tailored for extended-range thermal detection and high-resolution optical imaging. As part of the advanced thermal series, it is ideal for large-area security, such as airports, ports, and remote facilities, where long-distance monitoring is essential. It leverages AI for precise analytics, including fire detection and perimeter protection, ensuring reliable performance in fog, smoke, or darkness.

Key Features:

• Thermal Module: 384 × 288 resolution VOx uncooled sensor with a 35mm fixed lens (F1.0), offering a field of view approximately 10.5° × 7.9°; extended detection ranges up to 1029m for vehicles and 336m for humans; accurate temperature measurement from -20°C to 550°C with ±2°C precision.
• Optical Module: 8MP resolution (3840 × 2160) with a matching lens for detailed visible light capture at up to 30 fps; features auto day/night switching with IR cut filter.
• Illumination: Built-in IR illuminators effective up to 50m for the optical channel, providing clear nighttime footage.
• Intelligent VCA: AI-powered functions for perimeter security (line crossing, intrusion detection), fire/smoke identification, and temperature alarms; deep learning reduces false alerts.
• Durability: IP67-rated for environmental protection; operates in temperatures from -40°C to 65°C; sturdy build for impact resistance.
• Connectivity and Power: PoE+ (802.3at), 12V DC, or 24V AC power options; includes alarm and audio ports, microSD storage up to 256GB, and ONVIF support for seamless integration.

This model supports image fusion for combined thermal and optical views.
